MEGA 2560 R3 development board – ATmega2560 with 54 I/O pins…
See original version (French)
186
-
MEGA 2560 R3 development board – ATmega2560 with 54 I/O pins…
See original version (French)
Estimate €22 - €69
Voluntary lot
Description
MEGA 2560 R3 development board – ATmega2560 with 54 I/O pins and USB cable – Ideal for robotics and CNC prototyping – See photos – This item delivered to your door anywhere in mainland France from €11.99 - VAT recoverable - Postage costs shared across all your winning lots

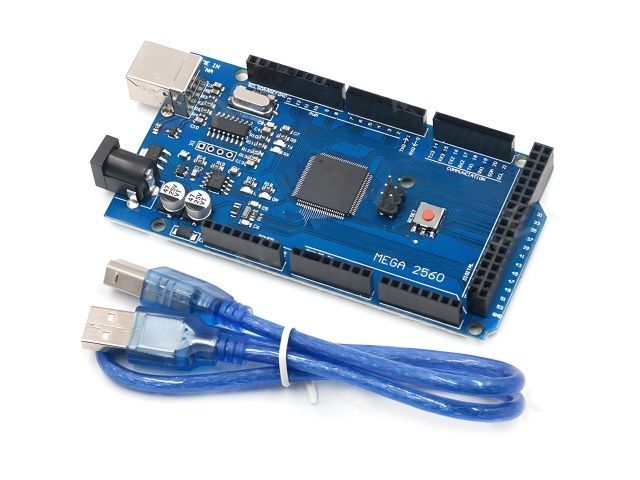

MEGA 2560 R3 Development Board with USB cable
The MEGA 2560 R3 module with ATmega2560 microcontroller is an advanced control board designed for projects requiring a large number of inputs and outputs, such as robotics, CNC machines, home automation, surveillance systems or 3D printing. Thanks to its high processing power, generous memory and numerous serial interfaces, it is ideally suited to complex applications. Its large number of digital and analogue I/O pins makes it easy to connect sensors, motors and communication modules.
Technical specifications
* Microcontroller: ATmega2560 (operating voltage: 5 V)
* Recommended supply voltage: 7 V to 12 V
* Clock frequency: 12 MHz / 16 MHz
* Flash memory: 256 kB (of which 5 kB is reserved for the bootloader)
* SRAM: 8 kB
* EEPROM: 4 kB
* Digital inputs/outputs: 54 pins (including 15 PWM outputs)
* Analogue inputs: 16 ADC channels
* Maximum output current per pin: 40 mA
* Serial interfaces: UART, SPI, I2C
* External interrupts
* Programming/power connector: USB Type B port
* ICSP connector available

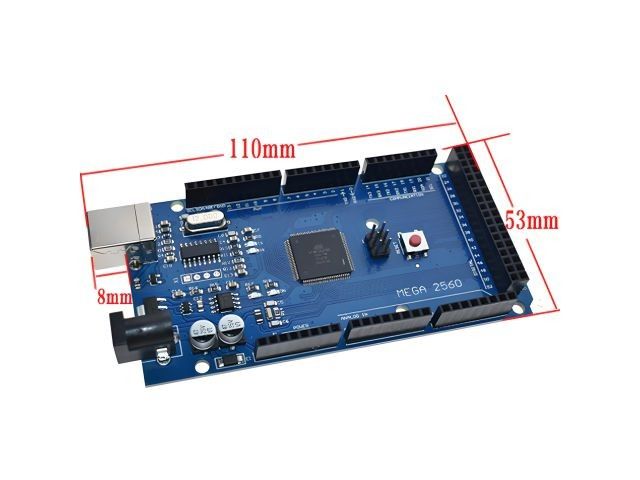

* Board dimensions: approx. 110 mm x 53 mm x 8 mm
* Pin pitch: 2.54 mm
Kit contents
* 1 x MEGA 2560 R3 microcontroller board
* 1 x USB-A to USB-B programming cable
* 1 x User manual
Suggested applications
* 3D printer projects (e.g. RAMPS) and CNC milling machines
* Advanced robotics projects requiring multiple servomotors and sensors
* Home automation systems and multi-channel data acquisition units
* Electronics learning and prototyping for makers and students
Practical information
* Packaging: 2-piece kit (board + cable)
* Compatibility: Arduino IDE programming environment
SEO keywords
* Mega 2560 R3 board, ATMega2560, Arduino-compatible microcontroller, robotics development board, CNC 3D printer, DIY electronics
Weight: 1 kg
See original version (French)
Auto-translation. Refer to original language for legal validity.
